LIFT TABLE TRUCK DOUBLE SCISSOR
Technical specifications |
Lift table SBSPS15 |
Lift table SBSPS35 |
Lift table SBSPF68 |
|---|---|---|---|
Load capacity (kg) |
150 |
350 |
680 |
features |
double scissors |
double scissors |
double scissors |
Height of the table, lowered |
302 |
350 |
474 |
lifting height (mm) |
798 |
950 |
1026 |
max. lifting height (mm) |
1100 |
1300 |
1500 |
Foot Pedal Cycles to Max Height |
30 |
60 |
35/80 |
Table size (LxWxH) (mm) |
700x450x35 |
910x450x35 |
1210x610x55 |
overall height (mm) |
921 |
970 |
1038 |
total length (mm) |
773 |
980 |
1289 |
service |
hand |
hand |
hand |
wheel diameter (d mm) |
100 |
127 |
150 |
tires |
polyurethane |
polyurethane |
polyurethane |
Own weight (kg) |
64 |
105 |
185 |
Features:

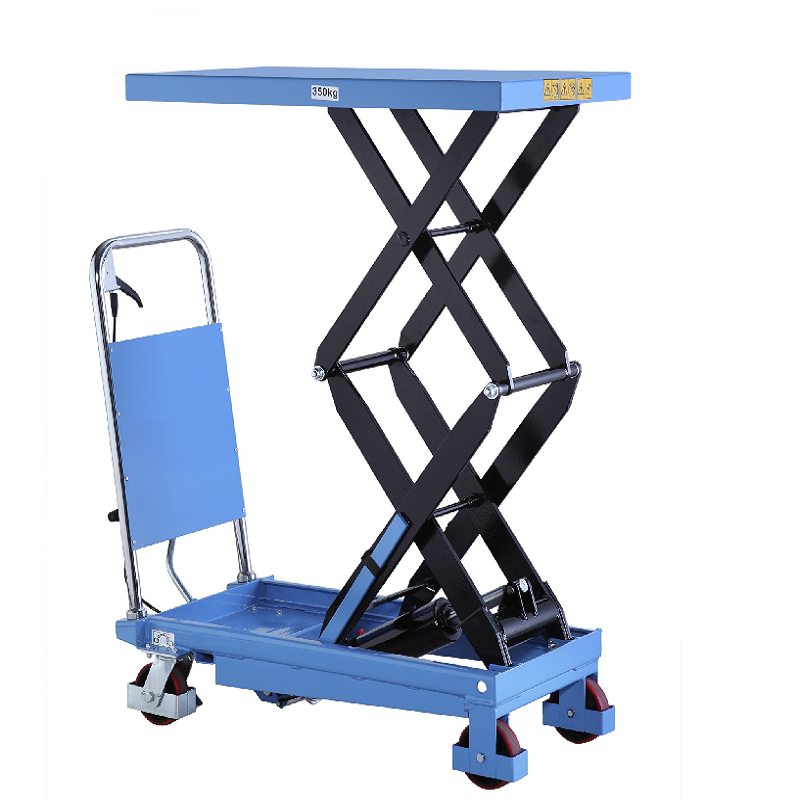

Lifting table 150Kg to 1100mm 350Kg to 1300mm and 680kg to 1500mm height. Double Scissor lift truck on wheels. A mobile lifting table and the ideal support when loading, filling or unloading. Materials and goods are brought to a suitable working height.
LIFT TABLE TRUCK DOUBLE SCISSOR SUPPLIER IN ABU DHABI UAE RIGSTORE.AE
